PowerHouse

More Power + Most Safe = Mission Assurance

Complete containerized graphene supercapacitor-based energy storage system with integrated power control system—ready to connect to grid, generators, or solar to deliver clean, reliable power for any mission load.

Icon-Shipping Container.png
f90d2c32-b2b7-4706-9453-5ccc69f64a7b_edi

Container: 10 or 20ft Conex

Storage: 2.2 - 4.7MWh (Gen 9)

Power: 1.25MW to 5MW PCS

Voltage: Up to 1000V

Cost: Lowest Install Cost


Safe: No Li-Ion No Thermal Runaway

Scalable: Unlimited Linked Pods

​Inputs: Grid/Gen/Solar

Mobile: Safe to fly on aircraft

Warranty: 10 Years

Custom Configurations Available

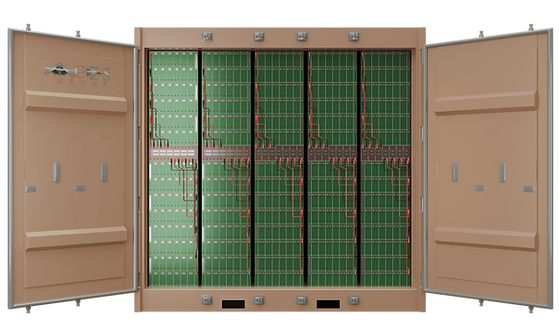

2.9 MWh 10-Foot Container (Battery Only)

DIMENSIONS

  • Container: Standard 10 ft ISO Container

  • ​Weight: 33,660 lbs (15,268 kg)

  • Dimensions (W x H x D):

    • 8 ft × 8.5 ft × 10 ft

    • 2438 mm × 2591 mm × 3048 mm

​​​​

CONTAINER SPECIFICATIONS

  • SuperRacks: 10

  • Total Capacitors: 9800

  • Specific Energy Density: 192 Wh/kg

  • Volumetric Energy Density:  152 Wh/L

  • Minimum Temp Cells: –40°F (–40°C)

  • Maximum Temp Cells: 176°F (80°C)

  • Resistance (cell pack): 1.4 mΩ (fully charged)

  • Resistance (cell pack): 2.6 mΩ (fully drained)​​

  • Nominal Energy Rating: 2940 kWh

  • Nominal Energy Storage: 5600 Ah

  • Estimated Leakage Current: < 4% per year

  • Max Voltage: 588 V

  • Min Voltage: 406 V

  • Max Current: 2800 A @ 0.5C

  • Nominal Current: 1400 A @ 0.25C

  • Peak Current (5 sec): 5600 A

  • Maximum Charge Current: 2800 A @ 0.5C

  • Mean Wh Derived Capacitance: 58,760 F

  • Peak Efficiency: 94% @ 0.5C, 97% @ 0.25C

  • Min Charge/Discharge Time: 130 minutes @ O.5C (Includes CV Charge Tail)

  • Min Temp (Limited by Electronics): –4°F (–20°C)

  • Max Temp (Limited by Electronics): 140°F (60°C)

  • Cycle Life: 20,000 cycles @ 0.5C

  • Ingress Protection: IP55

  • Protective Class: I

  • Built-in Protections: overvolting, undervolting, overheating, and comprehensive temperature monitoring (all cells/bus bars, contactors, fuses, and terminals)

  • Central Controller Module:

    • Safety Interlock Signal Terminals (Fault, Enable, Ack)​

    • Communications & Monitoring: CANBUS, RS485, and TCP (MODBUS-RTU, MODBUS-TCP, PROFIBUS, PROFINET, ETHERCAT, GENERIC TCP, any copper or fiber options)​

    • Redundant Contactor and Fused Protection

    • Smart Touchscreen Display



INVERTER SPECIFICATIONS

  • 1500A total, 50/60/400Hz, 480V 3P+E

  • Programmable earth leakage protection​​​​​​​

​

OPTIONAL FEATURES

  • Connectivity Options: Wired and Wi-fi​

  • Number and type of connectors

  • Transformer for neutral and 120/240V

​​​

SUBCOMPONENT SPECIFICATIONS


2.6 MWh 10-Foot Container (Battery+Inverter)

DIMENSIONS

  • Container: Standard 10 ft ISO Container

  • ​Weight: 30,794 lbs (13,997 kg)

  • Dimensions (W x H x D):

    • 8 ft × 8.5 ft × 10 ft

    • 2438 mm × 2591 mm × 3048 mm

​​​​

CONTAINER SPECIFICATIONS

  • SuperRacks: 10

  • Total Capacitors: 8820

  • Specific Energy Density: 189 Wh/kg

  • Volumetric Energy Density:  137 Wh/L

  • Minimum Temp Cells: –40°F (–40°C)

  • Maximum Temp Cells: 176°F (80°C)

  • Resistance (cell pack): 1.4 mΩ (fully charged)

  • Resistance (cell pack): 2.6 mΩ (fully drained)​​

  • Nominal Energy Rating: 2646 kWh

  • Nominal Energy Storage: 5040 Ah

  • Estimated Leakage Current: < 4% per year

  • Max Voltage: 588 V

  • Min Voltage: 406 V

  • Max Current: 2520 A @ 0.5C

  • Nominal Current: 1260 A @ 0.25C

  • Peak Current (5 sec): 5040 A

  • Maximum Charge Current: 2520 A @ 0.5C

  • Mean Wh Derived Capacitance: 52,884 F

  • Peak Efficiency: 94% @ 0.5C, 97% @ 0.25C

  • Min Charge/Discharge Time: 130 minutes @ O.5C (Includes CV Charge Tail)

  • Min Temp (Limited by Electronics): –4°F (–20°C)

  • Max Temp (Limited by Electronics): 140°F (60°C)

  • Cycle Life: 20,000 cycles @ 0.5C

  • Ingress Protection: IP55

  • Protective Class: I

  • Built-in Protections: overvolting, undervolting, overheating, and comprehensive temperature monitoring (all cells/bus bars, contactors, fuses, and terminals)

  • Central Controller Module:

    • Safety Interlock Signal Terminals (Fault, Enable, Ack)​

    • Communications & Monitoring: CANBUS, RS485, and TCP (MODBUS-RTU, MODBUS-TCP, PROFIBUS, PROFINET, ETHERCAT, GENERIC TCP, any copper or fiber options)​

    • Redundant Contactor and Fused Protection

    • Smart Touchscreen Display

​​​​​​​

OPTIONAL FEATURES

  • Connectivity Options: Wired and Wi-fi​

  • Number and type of connectors

​​​

SUBCOMPONENT SPECIFICATIONS


5.88 MWh 20-Foot Container (Battery Only)

DIMENSIONS

  • Container: Standard 20 ft ISO Container

  • ​Weight: 64,320 lbs (29,236 kg)

  • Dimensions (W x H x D):

    • 8 ft × 8.5 ft × 20 ft

    • 2438 mm × 2591 mm × 6096 mm

​​​​

CONTAINER SPECIFICATIONS

  • SuperRacks: 20

  • Total Capacitors: 19,600

  • Specific Energy Density: 201 Wh/kg

  • Volumetric Energy Density:  152 Wh/L

  • Minimum Temp Cells: –40°F (–40°C)

  • Maximum Temp Cells: 176°F (80°C)

  • Resistance (cell pack): 1.4 mΩ (fully charged)

  • Resistance (cell pack): 2.6 mΩ (fully drained)​​

  • Nominal Energy Rating: 5880 kWh

  • Nominal Energy Storage: 11,200 Ah

  • Estimated Leakage Current: < 4% per year

  • Max Voltage: 588 V

  • Min Voltage: 406 V

  • Max Current: 5600 A @ 0.5C

  • Nominal Current: 2800 A @ 0.25C

  • Peak Current (5 sec): 11,200 A

  • Maximum Charge Current: 5600 A @ 0.5C

  • Mean Wh Derived Capacitance: 117,520 F

  • Peak Efficiency: 94% @ 0.5C, 97% @ 0.25C

  • Min Charge/Discharge Time: 130 minutes @ O.5C (Includes CV Charge Tail)

  • Min Temp (Limited by Electronics): –4°F (–20°C)

  • Max Temp (Limited by Electronics): 140°F (60°C)

  • Cycle Life: 20,000 cycles @ 0.5C

  • Ingress Protection: IP55

  • Protective Class: I

  • Built-in Protections: overvolting, undervolting, overheating, and comprehensive temperature monitoring (all cells/bus bars, contactors, fuses, and terminals)

  • Central Controller Module:

    • Safety Interlock Signal Terminals (Fault, Enable, Ack)​

    • Communications & Monitoring: CANBUS, RS485, and TCP (MODBUS-RTU, MODBUS-TCP, PROFIBUS, PROFINET, ETHERCAT, GENERIC TCP, any copper or fiber options)​

    • Redundant Contactor and Fused Protection

    • Smart Touchscreen Display

​​​​​​​

OPTIONAL FEATURES

  • Connectivity Options: Wired and Wi-fi​

  • Number and type of connectors

​​​

SUBCOMPONENT SPECIFICATIONS

4.465 MWh 20-Foot Container (Battery + Inverter)

DIMENSIONS

  • Container: Standard 20 ft ISO Container

  • ​Weight: 61,454 lbs (27,933 kg)

  • Dimensions (W x H x D):

    • 8 ft × 8.5 ft × 20 ft

    • 2438 mm × 2591 mm × 6096 mm

​​​​

CONTAINER SPECIFICATIONS

  • SuperRacks: 19

  • Total Capacitors: 18,620

  • Specific Energy Density: 200 Wh/kg

  • Volumetric Energy Density:  145 Wh/L

  • Minimum Temp Cells: –40°F (–40°C)

  • Maximum Temp Cells: 176°F (80°C)

  • Resistance (cell pack): 1.4 mΩ (fully charged)

  • Resistance (cell pack): 2.6 mΩ (fully drained)​​

  • Nominal Energy Rating: 5586 kWh

  • Nominal Energy Storage: 10,640 Ah

  • Estimated Leakage Current: < 4% per year

  • Max Voltage: 588 V

  • Min Voltage: 406 V

  • Max Current: 5320 A @ 0.5C

  • Nominal Current: 2660 A @ 0.25C

  • Peak Current (5 sec): 10,640 A

  • Maximum Charge Current: 5320 A @ 0.5C

  • Mean Wh Derived Capacitance: 111,640 F

  • Peak Efficiency: 94% @ 0.5C, 97% @ 0.25C

  • Min Charge/Discharge Time: 130 minutes @ O.5C (Includes CV Charge Tail)

  • Min Temp (Limited by Electronics): –4°F (–20°C)

  • Max Temp (Limited by Electronics): 140°F (60°C)

  • Cycle Life: 20,000 cycles @ 0.5C

  • Ingress Protection: IP55

  • Protective Class: I

  • Built-in Protections: overvolting, undervolting, overheating, and comprehensive temperature monitoring (all cells/bus bars, contactors, fuses, and terminals)

  • Central Controller Module:

    • Safety Interlock Signal Terminals (Fault, Enable, Ack)​

    • Communications & Monitoring: CANBUS, RS485, and TCP (MODBUS-RTU, MODBUS-TCP, PROFIBUS, PROFINET, ETHERCAT, GENERIC TCP, any copper or fiber options)​

    • Redundant Contactor and Fused Protection

    • Smart Touchscreen Display

​​​​​​​

OPTIONAL FEATURES

  • Connectivity Options: Wired and Wi-fi​

  • Number and type of connectors

​​​

SUBCOMPONENT SPECIFICATIONS
